Project No.18

Menaiktaraf Logi Rawatan Air Pelubang, Daerah Kubang Pasu, Kedah Darul Aman – Main Contract No: S/K/6/2021

The construction contract for the implementation of the Project is divided into two (2) major Parts as follows:

  • Part 1 – Intake and Water Treatment Plant Upgrading Works.
  • Part 2 – Pipeline and Reservoir Works

The major work components for Part 1 will be the development of the following:

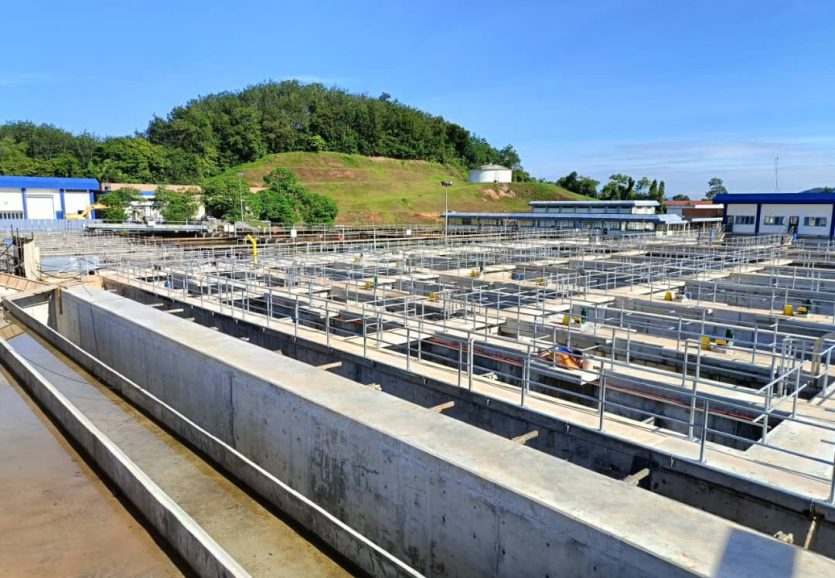

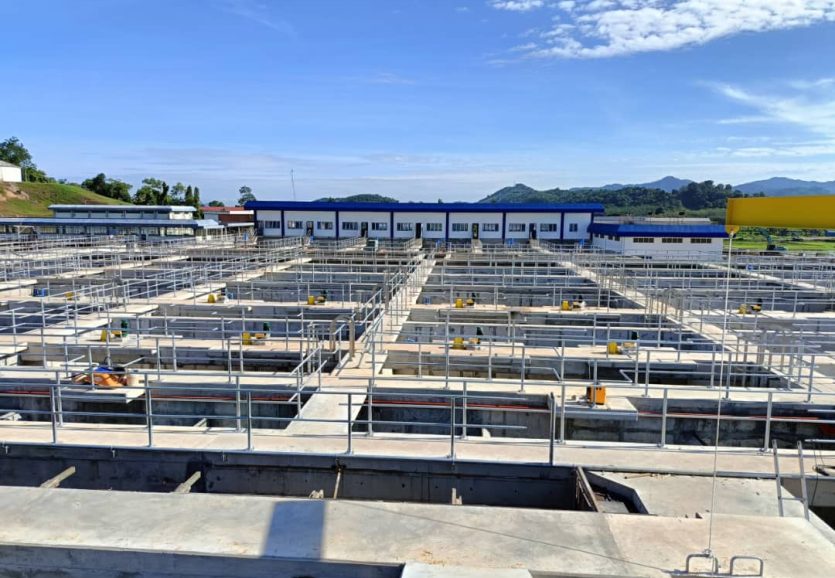

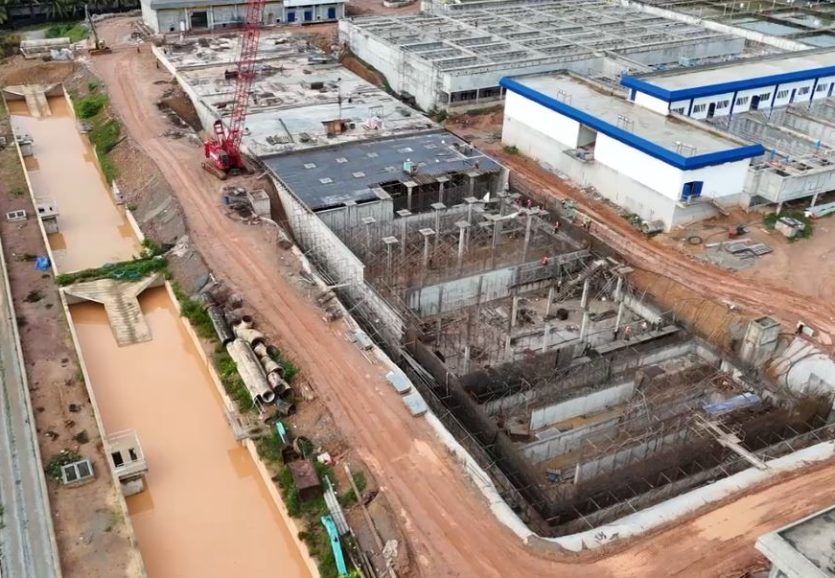

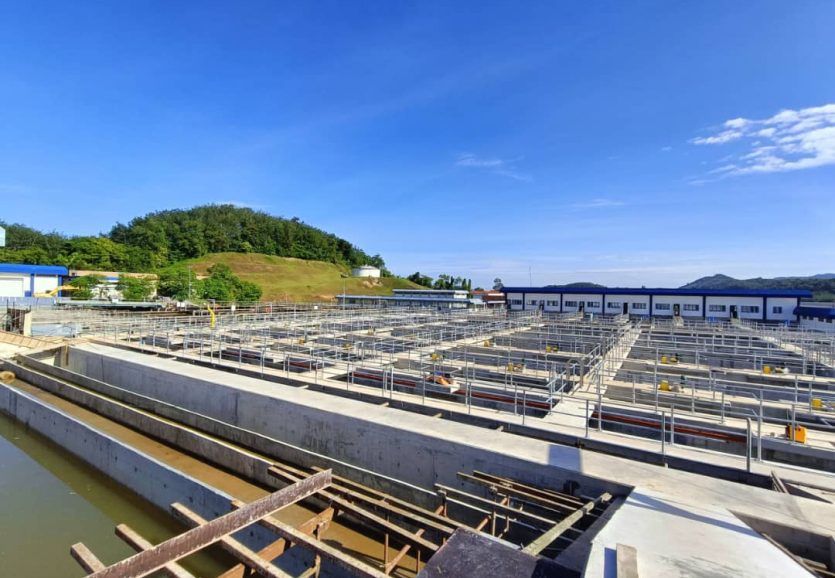

  • Proposed Upgrading Works of Pelubang Water Treatment Plant from 227 Mld to 454 Mld and its associated works;

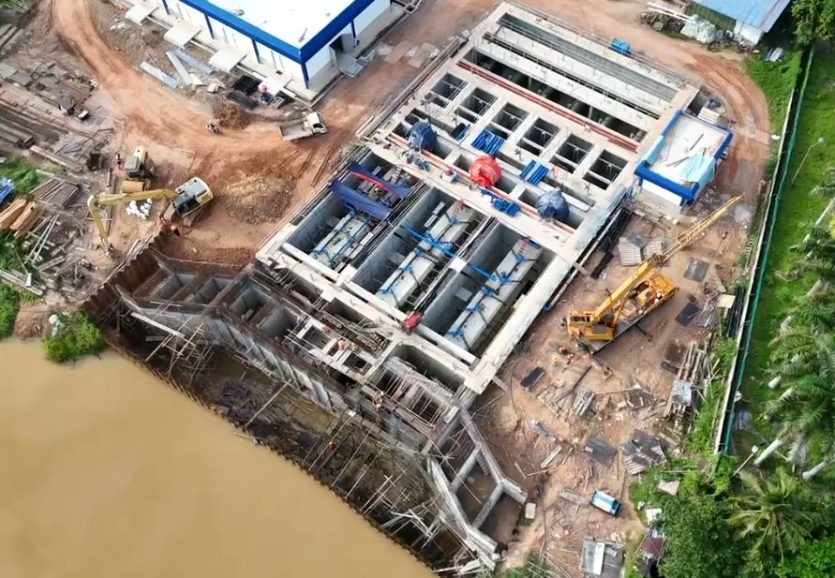

  • Proposed New Intake and Raw Water Pump House with a nominal capacity of 227 Mld along Sg. Besar or Terusan Besar, and
  • Supply and laying of mild steel Raw Water Pumping Main of size 1600mm diameter of approximately 0.6km from the new Intake Works to the new Water Treatment Plant.

The civil & structural works, among others, include site formation, earthworks, roadwork, fencing and landscaping works, TNB 33kV/11kV Sub Station, 415V Switch House, Flood detention pond, drainage and overflow system.
